获取附件

叶随风...
获取附件

将SAP采购申请上(其他附件同理)的附件传输给外围系统
将文件转换成二进制再转换成16进制(XSTRING)传输给外围系统
过程

可以在TOJTT表中查找相关对象类型
可以在SRGBTBREL表中查看已存在附件
可以研究一下能否直接使用ODATA(CV_ATTACHMENT还不会用ODATA🐤)
代码

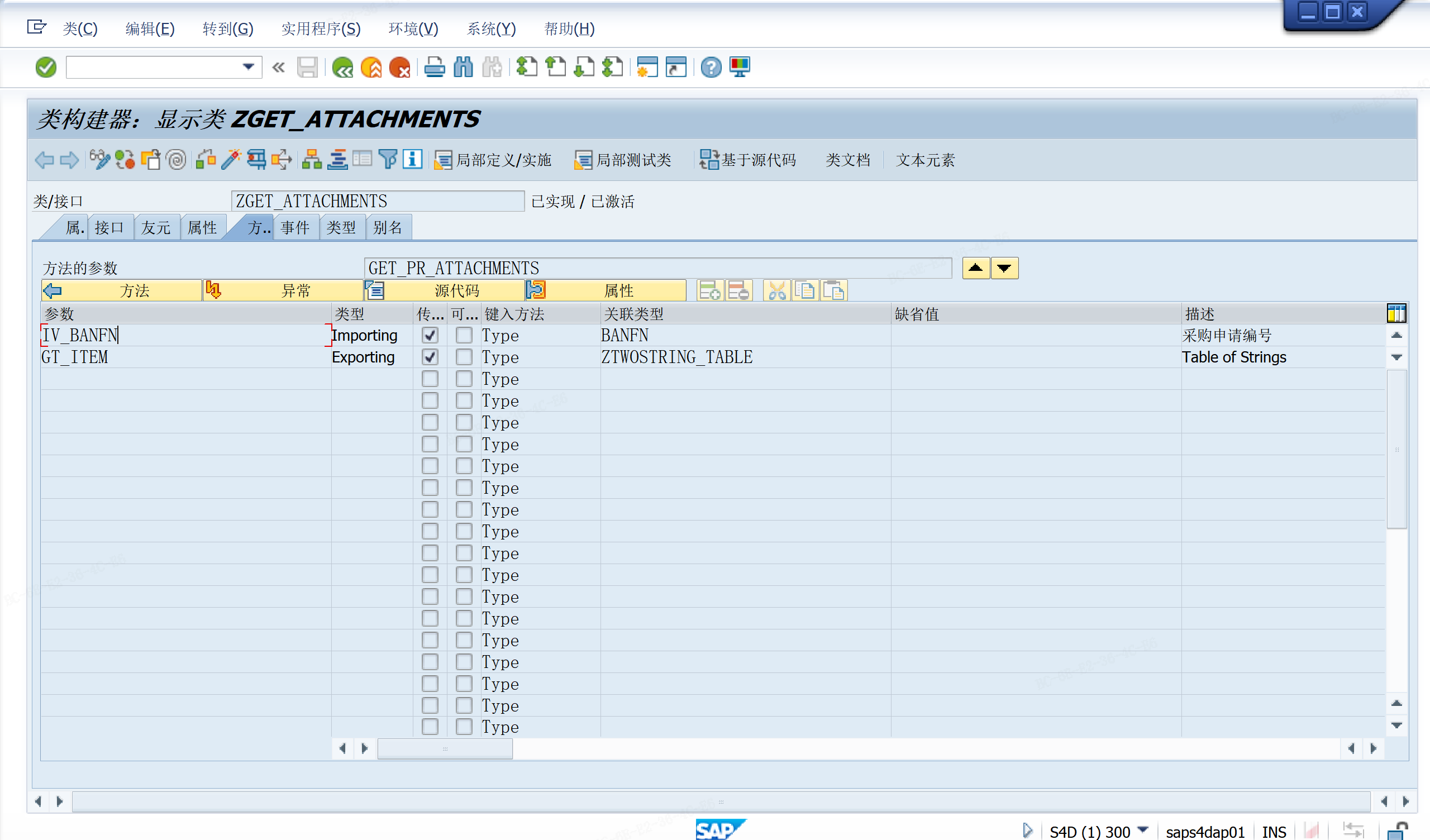

自己写了(抄🎧)个公开类-SE24:ABAP类构建器
   METHOD GET_PR_ATTACHMENTS.

    DATA: LV_OBJECT_TYPE       TYPE DOKOB,
          LV_OBJECT_TYPE_LONG  TYPE OBJECTTYPEID,
          LV_SEMANTIC_OBJECT   TYPE /UI2/SEMANTIC_OBJECT,
          LV_OBJECT_KEY        TYPE OBJKY,
          LT_ATTACHMENTS       TYPE TT_ODATA_CV_ATTACH,
          LS_ORIGINAL_CONTENT  TYPE CL_CV_ATTACHMENT_MPC_EXT=>TS_ORIGINALCONTENT_EXT,
          LT_ORIGINAL_CONTENTS TYPE CL_CV_ATTACHMENT_MPC_EXT=>TT_ORIGINALCONTENT_EXT,
          LT_GOS_ORIGINAL_CONT TYPE CL_ODATA_CV_BO=>TY_T_ATTACHMENT_CONTENT,
          LS_GOS_ORIGINAL_CONT TYPE CL_ODATA_CV_BO=>TY_S_ATTACHMENT_CONTENT,
          LX_CV_BASE           TYPE REF TO CX_ODATA_CV_BASE_EXCEPTION,
          LT_RETURN            TYPE BAPIRET2_T,
          LT_HEADERS           TYPE TIHTTPNVP,
          LO_PERS_SERV         TYPE REF TO IF_ODATA_CV_SERVICE,
          LB_ATTACH_PERSIST    TYPE REF TO BADI_CV_ODATA_ATTACH_PERSIST,
          LS_ODATA_CV_OBJ_MAP  TYPE ODATA_CV_OBJ_MAP.

    DATA LV_OBJ_ID     TYPE SX_OBJ_ID.
    DATA LS_CONTENT    TYPE SX_CONTENT.
    DATA LT_DATA       TYPE TABLE OF SOLIX.
    DATA LT_DATA2       TYPE TABLE OF SOLI.
    DATA LV_FILENAME   TYPE STRING.
    DATA LV_PATH       TYPE STRING.
    DATA LV_FULLPATH   TYPE STRING.
    DATA LV_LEN        TYPE I.
    DATA GS_ITEM TYPE ZTWOSTRING.
    DATA LV_FILE_LENGTH TYPE I.
    DATA LV_STRING_TABLE TYPE XSTRING.
    DATA LV_STRING_BSE64 TYPE STRING.
    DATA LV_EF_HASHSTRING TYPE STRING.
    DATA LV_STRING TYPE STRING.

**********************************************************************

    LV_OBJECT_TYPE_LONG = LV_OBJECT_TYPE = 'BUS2105'. "Business Object for Purchase Requisition
    LV_OBJECT_KEY       = IV_BANFN. "Purchase Requisition Number

**********************************************************************

    GET BADI LB_ATTACH_PERSIST
      FILTERS
        OBJECT_TYPE     = LV_OBJECT_TYPE
        SEMANTIC_OBJECT = LV_SEMANTIC_OBJECT.

    IF LB_ATTACH_PERSIST IS BOUND.
      CALL BADI LB_ATTACH_PERSIST->FINALIZE_OBJECT_KEYS
        EXPORTING
          IV_OBJECTTYPE          = LV_OBJECT_TYPE
          IV_OBJECTTYPE_LONG     = LV_OBJECT_TYPE_LONG
        CHANGING
          CV_FINALIZED_OBJECTKEY = LV_OBJECT_KEY.
    ENDIF.

**********************************************************************

    TRY.

        LS_ODATA_CV_OBJ_MAP-GOS_OBJTYPE = LV_OBJECT_TYPE.

        LO_PERS_SERV = CL_CV_ATTACHMENT_OBJ_FACTORY=>GET_OBJECT_INSTANCE(
                              IV_PERS_OBJECTTYPE = IF_ODATA_CV_CONSTANTS=>GC_GOS_OBJECT
                              IS_OBJ_MAP         = LS_ODATA_CV_OBJ_MAP ).

        CALL METHOD LO_PERS_SERV->GET_ATTACHMENT_LIST
          EXPORTING
            IV_OBJECTKEY        = LV_OBJECT_KEY
            IV_OBJECTTYPE_LONG  = LV_OBJECT_TYPE_LONG
          IMPORTING
            ET_ORIGINAL_CONTENT = LT_GOS_ORIGINAL_CONT
            ET_HEADER           = LT_HEADERS
            ET_MESSAGES         = LT_RETURN.

        IF LT_RETURN IS INITIAL.

          MOVE-CORRESPONDING EXACT LT_GOS_ORIGINAL_CONT TO LT_ATTACHMENTS.

          LOOP AT LT_GOS_ORIGINAL_CONT INTO LS_GOS_ORIGINAL_CONT.
            READ TABLE LT_ATTACHMENTS WITH KEY APPLICATION_ID = LS_GOS_ORIGINAL_CONT-APPLICATION_ID
                                               FILE_ID        = LS_GOS_ORIGINAL_CONT-FILE_ID
                                               TRANSPORTING NO FIELDS.
            IF  SY-SUBRC <> 0.
              DELETE LT_GOS_ORIGINAL_CONT USING KEY LOOP_KEY.
            ENDIF.
          ENDLOOP.

          IF LT_GOS_ORIGINAL_CONT IS NOT INITIAL.
            CLEAR LT_ORIGINAL_CONTENTS.
            LOOP AT LT_GOS_ORIGINAL_CONT INTO LS_GOS_ORIGINAL_CONT.
              CLEAR LS_ORIGINAL_CONTENT.
              MOVE-CORRESPONDING LS_GOS_ORIGINAL_CONT TO LS_ORIGINAL_CONTENT.
              LS_ORIGINAL_CONTENT-CONTENTTYPE       = LS_GOS_ORIGINAL_CONT-MIMETYPE.
              LS_ORIGINAL_CONTENT-FULLNAME          = LS_GOS_ORIGINAL_CONT-CREATEDBY_FULLNAME.
              LS_ORIGINAL_CONTENT-ATTACHMENTSTATUS  = LS_GOS_ORIGINAL_CONT-ATTACHMENT_STATUS.
              LS_ORIGINAL_CONTENT-CONTENTSOURCE     = LS_GOS_ORIGINAL_CONT-ATTACHMENT_URL.
              LS_ORIGINAL_CONTENT-SOURCE            = IF_ODATA_CV_CONSTANTS=>GC_GOS_OBJECT.
              APPEND LS_ORIGINAL_CONTENT TO LT_ORIGINAL_CONTENTS.
            ENDLOOP.
          ENDIF.
        ENDIF.

      CATCH CX_ODATA_CV_DB_EXCEPTION CX_ODATA_CV_BASE_EXCEPTION INTO LX_CV_BASE.
    ENDTRY.

**********************************************************************

    LOOP AT LT_ORIGINAL_CONTENTS ASSIGNING FIELD-SYMBOL(<FILES>).

      "Get file content
      LV_OBJ_ID = <FILES>-DOCUMENTNUMBER.
      CALL FUNCTION 'SO_OBJECT_DATA_FOR_SEND_GET'
        EXPORTING
          OBJECT_ID            = LV_OBJ_ID
        IMPORTING
          CONTENT              = LS_CONTENT
        EXCEPTIONS
          ERR_OBJ_NOT_FOUND    = 1
          ERR_NO_AUTHORIZATION = 2
          ERR_WRONG_REFERENCE  = 3
          OTHERS               = 4.

      LT_DATA = LS_CONTENT-LINESX.
      LV_LEN  = LS_CONTENT-LEN.

*      "Can download to local
*      CALL METHOD cl_gui_frontend_services=>file_save_dialog
*        CHANGING
*          filename             = lv_filename
*          path                 = lv_path
*          fullpath             = lv_fullpath
*        EXCEPTIONS
*          cntl_error           = 1
*          error_no_gui         = 2
*          not_supported_by_gui = 3
*          OTHERS               = 4.
*
*      CALL FUNCTION 'GUI_DOWNLOAD'
*        EXPORTING
*          bin_filesize = lv_len
*          filename     = lv_fullpath
*          filetype     = 'BIN'
*        TABLES
*          data_tab     = lt_data.


*      LV_FILE_LENGTH = LINES( LT_DATA[] ) * 255.
      LV_FILE_LENGTH = LV_LEN.

*将二进制数据转换为XSTRING格式
      CALL FUNCTION 'SCMS_BINARY_TO_XSTRING'
        EXPORTING
          INPUT_LENGTH = LV_FILE_LENGTH
        IMPORTING
          BUFFER       = LV_STRING_TABLE
        TABLES
          BINARY_TAB   = LT_DATA
        EXCEPTIONS
          FAILED       = 1
          OTHERS       = 2.

**XSTRING转BASE64
*      CALL FUNCTION 'SCMS_BASE64_ENCODE_STR'
*        EXPORTING
*          INPUT  = LV_STRING_TABLE
*        IMPORTING
*          OUTPUT = LV_STRING_BSE64.


**将base64进行sha256加密变短点太长了，不太行这个加密好像不能解密
*      TRY.
*          CL_ABAP_MESSAGE_DIGEST=>CALCULATE_HASH_FOR_CHAR(
*            EXPORTING
*              IF_ALGORITHM = 'SHA256'
*              IF_DATA      = LV_STRING_BSE64
*            IMPORTING
*              EF_HASHSTRING = LV_EF_HASHSTRING
*          ).
*        CATCH CX_ROOT.
*          " Eh, what're you gonna do?
*      ENDTRY.




      IF SY-SUBRC = 0 AND LV_STRING_TABLE IS NOT INITIAL.
        GS_ITEM-FILENAME = <FILES>-FILENAME.
        GS_ITEM-STRING_TABLE = LV_STRING_TABLE.
*        GS_ITEM-STRING_TABLE = LV_EF_HASHSTRING.
*        GS_ITEM-STRING_TABLE = LV_STRING_BSE64.
        APPEND GS_ITEM TO GT_ITEM.
      ENDIF.


**将二进制数据转换为STRING格式
*      CALL FUNCTION 'SCMS_BINARY_TO_STRING'
*        EXPORTING
*          INPUT_LENGTH = LV_FILE_LENGTH
**         FIRST_LINE   = 0
**         LAST_LINE    = 0
**         MIMETYPE     = ' '
**         ENCODING     =
*        IMPORTING
*          TEXT_BUFFER  = LV_STRING
**         OUTPUT_LENGTH       =
*        TABLES
*          BINARY_TAB   = LT_DATA
** EXCEPTIONS
**         FAILED       = 1
**         OTHERS       = 2
*        .
*
*      IF SY-SUBRC = 0 AND LV_STRING IS NOT INITIAL.
*        GS_ITEM-FILENAME = <FILES>-FILENAME.
*        GS_ITEM-STRING_TABLE = LV_STRING.
*        APPEND GS_ITEM TO GT_ITEM.
*      ENDIF.


      IF LS_CONTENT-LINES[] IS NOT INITIAL .  ".txt?这里好像直接就是文本
*        LT_DATA2 = LS_CONTENT-LINES.
*        LV_LEN  = LS_CONTENT-LEN.
*        LV_FILE_LENGTH = LINES( LT_DATA2[] ).
*
**将二进制数据转换为XSTRING格式
*        CALL FUNCTION 'SCMS_BINARY_TO_XSTRING'
*          EXPORTING
*            INPUT_LENGTH = LV_FILE_LENGTH
*          IMPORTING
*            BUFFER       = LV_STRING_TABLE
*          TABLES
*            BINARY_TAB   = LT_DATA2
*          EXCEPTIONS
*            FAILED       = 1
*            OTHERS       = 2.
*
*        IF SY-SUBRC = 0 AND LV_STRING_TABLE IS NOT INITIAL.
*          GS_ITEM-FILENAME = <FILES>-FILENAME.
*          GS_ITEM-STRING_TABLE = LV_STRING_TABLE.
*          APPEND GS_ITEM TO GT_ITEM.
*        ENDIF.

      ENDIF.
    ENDLOOP.
  ENDMETHOD.
